Technical Specification

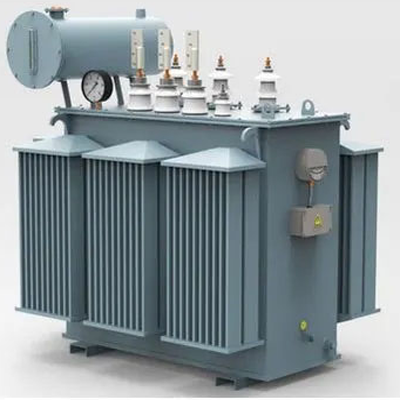

500 KVA transformer specifications type and data sheet
Delivered Time | Discussion Order Time |
| |
Model | S-M-500 kVA-33/6.6kV |
Type | Oil type distribution transformer without conservator , bushings on top |
Standard | IEC60076 |
Rated Power | 500 kVA |
Frequency | 60 HZ |
Phase | Three |
Cooling Type | ONAN |
Primary Voltage | 33 kV |
Secondary Voltage | 6.6 kV |
Winding Material | Copper |
Vector Group | Dny11 |
Impedance | 5.12% |
Tap Changer | NLTC |
Tapping Range | ±2*2.5% |
No Load Loss | 1.3KW |
On Load Loss | 6KW |
Accessories | Standard Configuration |
Remarks | N/A |
