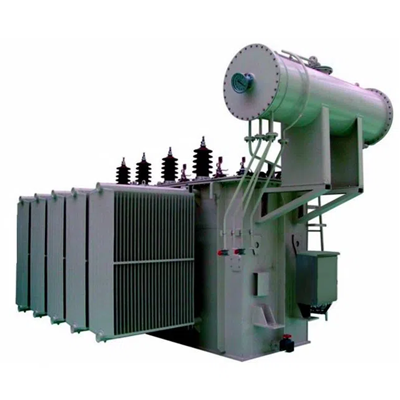

Model | S11-5 MVA-33/11KV |
Type | Oil Immersed Power Transformer |
Standard | IEC60076 |
Rated Power | 5 MVA |
Frequency | 50 HZ |
Phase | Three |
Cooling Type | ONAN |
Primary Voltage | 33 KV |
Secondary Voltage | 11 KV |
Winding Material | Copper |
Vector Group | Yd11 |
Impedance | 7 |
Tap Changer | NLTC |
Tapping Range | ±2*2.5% |
No Load Loss | 5.4 |
On Load Loss | 38 |
Accessories | Standard Configuration |
Remarks | N/A |
